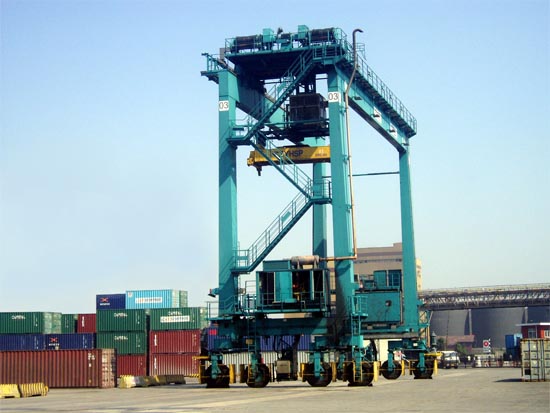

Tyred Container Crane
Description
Tyred container gantry crane is used to handle containers in the container terminal or yard.
- Product Details
- Make an Inquiry
1. Application range of Tyred Container Crane
Tyred container gantry crane is used to handle containers in the container terminal or yard.
2. Main features and advantages of Tyred Container Crane
● box type main girder features high stiffness.
● Rubber tyred container gantry crane move at a certain scope of angle, it is flexible
● High quality design and production meet the international standard.
As a leading Crane Supplier, We are able to provide high efficient Crane Construction with stable performance for you. We’d like to discuss Crane Construction with you. Welcome inquiry!
Tyred container gantry crane is used to handle containers in the container terminal or yard.
2. Main features and advantages of Tyred Container Crane
● box type main girder features high stiffness.
● Rubber tyred container gantry crane move at a certain scope of angle, it is flexible
● High quality design and production meet the international standard.
3. Main technical parameters of Tyred Container Crane
Product Model | MGJZL30.5 | MGJZL40.5 |
---|---|---|
Lifting Capacity (t) | 30.5 | 40.5 |
Wheel gauge(m) | 6.4 | 7.4 |
Span(m) | 23.74 | 23.47 |
Lifting height(m) | 12.284、15.24、17.75、20.75 | 12.284、15.24、17.75 |
Number of stacking storey | 3、4、5 | 3、4、5、6 |
Specification of box | 20′,40′ | 20′,40′ |
Hoisting speed with full load(m/min) | 37.5/75 | 24.15/54.58 |
Carne moving speed with full load(m/min) | 112 | 45/130 |
Trolley moving speed with full load(m/min) | 51.8 | 68.1 |
Number of wheels | 4 | 8 |
Max. wheel pressure(KN) | 389 | 350 |
Power supply | 3-phase A.C. 380v50HZ |
