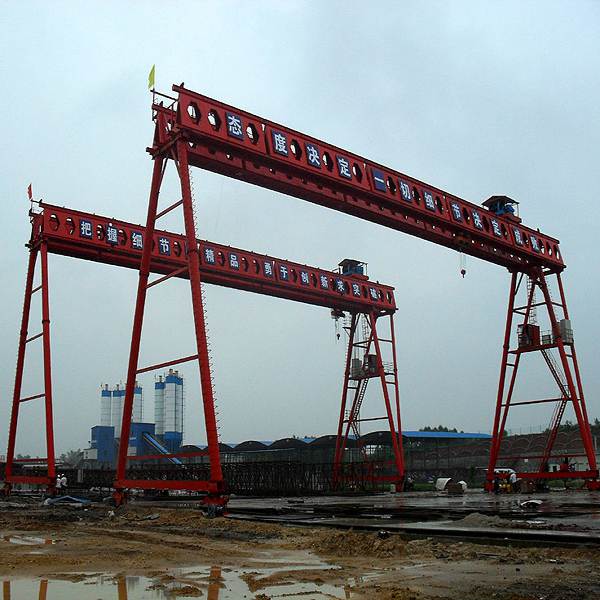

Honeycomb beam Gantry Crane
Description
Honeycomb beam gantry crane made by ZZHZ is famous for its unique honeycomb type main girder, reliable pin connection, flexible support legs, reasonable design and good price
  • Product Details
  • Make an Inquiry

The honeycomb beam gantry crane is  patent product of ZZHZ because of the domestic first-creating isosceles triangle honeycomb beam.

Honeycomb beam gantry crane  is famous for its unique honeycomb type main girder, reliable pin connection, flexible support legs, reasonable design and good price.

Till now, it is widely used to lift highway concrete girders with weight < 200t.

Main technical parameters



Product Model MGhz20 MGhz30 MGhz60 MGhz80 MGhz90
Lifting Capacity (t) 20 30 60 80 90
Net Height(m) 7 7 7 7 7
Span(m) 18 18 18 18 18
Moving Speed of Crane(m/min) 8 8 8 8 8
Moving speed of Trolley(m/min) 6 6 6 6 6
Lifting Speed of Trolley(m/min) 1 1 1 1 1
Matched Power (kw) 16 21 55 60 60



The video of Honeycomb beam Gantry Crane
