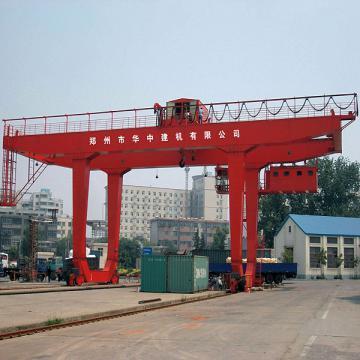

Rail mounted Container Gantry Crane
Description
Rail mounted container gantry crane is used to load and unload containers in container terminal or yard. After Containers are discharged from ship by quay container crane bridge, the trailer bus will transport them to storage yard or rear, t
  • Product Details
  • Make an Inquiry

Rail mounted container gantry crane is used to load and unload containers in container terminal or yard. After Containers are discharged from ship by quay container crane bridge, the trailer bus will transport them to storage yard or rear, then container gantry crane stacks them up or directly carry away, which quicken turnover of container carriage bridge or other cranes.

Rail mounted container gantry crane is used in fixed place by moving along the rail, it is sturdy and durable with less maintenance

Main technical parameters

Product Model MGJZ40 MGJZX40
Rated Lifting Weight(t) 40(Under Hoisting Device) 40(Under Hoisting Device)
Rail Torque(m) 35 35
Effective cantilever(m) 8.7(Both Sides) 8.7(Both Sides)
Lifting Height(m) 16.5 12.5
Crane Working Level M7 M7
Max lifting Velocity(m/min) 15 15
Gantry Traveling Velocity(m/min) Full Load≥35 Full Load≥40
Trolley Traveling Velocity(m/min) Full Load≥55 Full Load≥50
Slewed Trolley Velocity(round per minute) no 1.5~2
Max Wheel Pressure(In the Worst Working Condition )(t) ≤20 ≤25
Anti-shaking Device Flexible Anti-shaking Flexible Anti-shaking
Hoisting Device 20ft 、 40ft Fixed Lead Board Liquid-press Flexibility 20ft 、 40ft Fixed Lead Board Liquid-press Flexibility
Power Supply 3-Phase 4Line Lead Power Supply:   380v   50Hz 3-Phase 4Line Lead Power Supply:   380v   50Hz
Environment Temperature -10℃ —+ 45℃ -10℃ —+ 45℃
Max Relative Humidity 90% 90%
