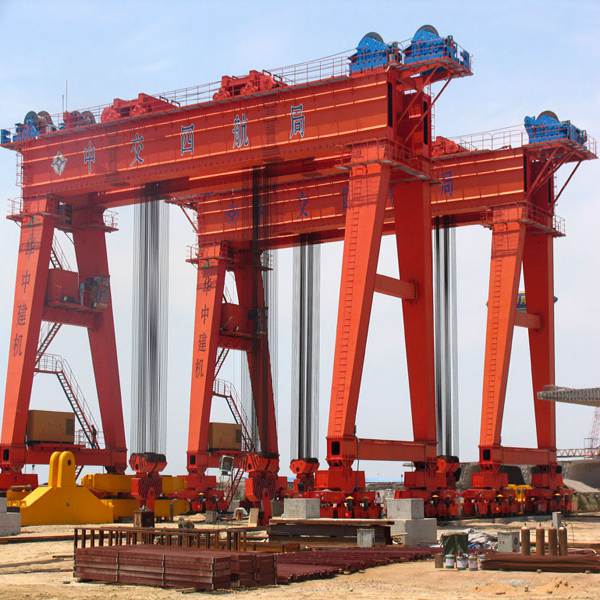

Super large-sized gantry crane
Description
Supersized gantry crane made by ZZHZ is used to lift high speed railway concrete box girder with heavy weight such as 450t, 900t, 1200t and so on
  • Product Details
  • Make an Inquiry

Supersized gantry crane is designed  for high speed railway bridge construction. Featuring steel box type main girder, heavy load and good quality, it is used to lift concrete box girder with heavy weight such as 450t, 900t, 1200t and so on.

Till now, the biggest gantry crane made by ZZHZ is 1200t, which is used to lift concrete girder in Qingdao Bay Bridge Project.

Main technical parameters



Product Model MGhz450 MGhz900 MGhz1200
Lifting capacity (t) 450 900 1200
Span (m) 39.5 41.5 28
Lifting height (m) 26 9.8 19
Crane moving speed 0-6 0-6 0-6
Trolley moving speed 0-4 0-3 0-2
Trolley lifting speed 0-0.5 0-0.5 0-1
Power (kw) 165 260 305
Dimension (m) 43×16.5×32.8 45.4×14.8×14.5 39.6×7.6×24
Self-weight (t) 475 480 606



Dome of Gantry crane
