Double girder Overhead Crane
Description
Double girder overhead crane is used to lift indoor objects with heavy load
  • Product Details
  • Make an Inquiry

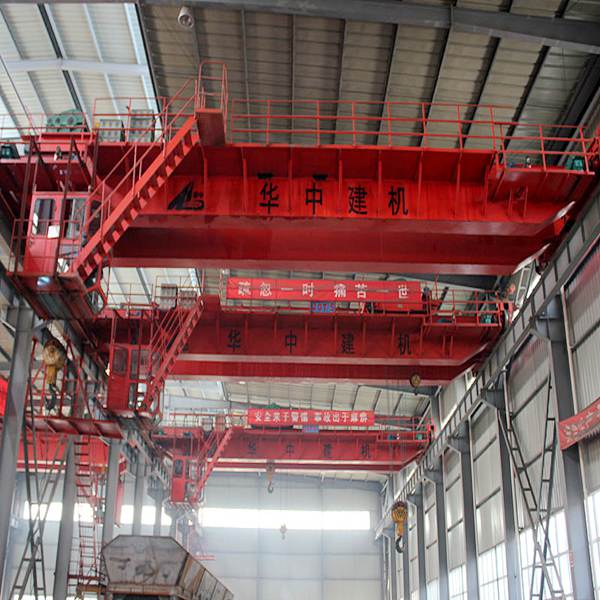

Double girder overhead crane is used to lift indoor objects with heavy load. Generally speaking, it uses trolley with hoist as lifting mechanism moving on the track of main girder. It is widely used in material handling sites such as mines, factories, docks and warehouses. And it is divided into 2 working grades of A5 and A6 according to the operation frequency.

Double girder overhead crane is made up of crane span structure, trolley, crane moving system and electrical system.

Main technical parameters

Product Model QD16 QD20 QD32 QD50
main hook lifting capacity(t) 16 20 32 50
span (m) 10.5-31.5 10.5-31.5 10.5-31.5 10.5-31.5
main hook lifting height (m) 16 12 16 12
auxiliary hook lifting height (m) 18 11 18 16
main hook lifting speed(m/min) A5 7.9 7.2 7.8 5.9
main hook lifting speed (m/min) A6 13 9.7 9.5 7.8
trolley moving speed(m/min) 44.6 44.6 42.4 38.5
auxiliary hook lifting capacity(t) 3.2 5 5 10
auxiliary hook lifting speed (m/min) 14.5 12.7 19.5 13.2
crane moving speed (m/min)A5 84.7 84.7 87.6 74.6
crane moving speed (m/min)A6 12.5 112.5 101.4 86.6
power (Kw) 85 100 120 150
